Home

Net Zero Home Plans

2602 Woburn

5 Bedrooms | 3 Bathrooms | 2000 sqft

Est. Annual Energy Cost Savings: $2416

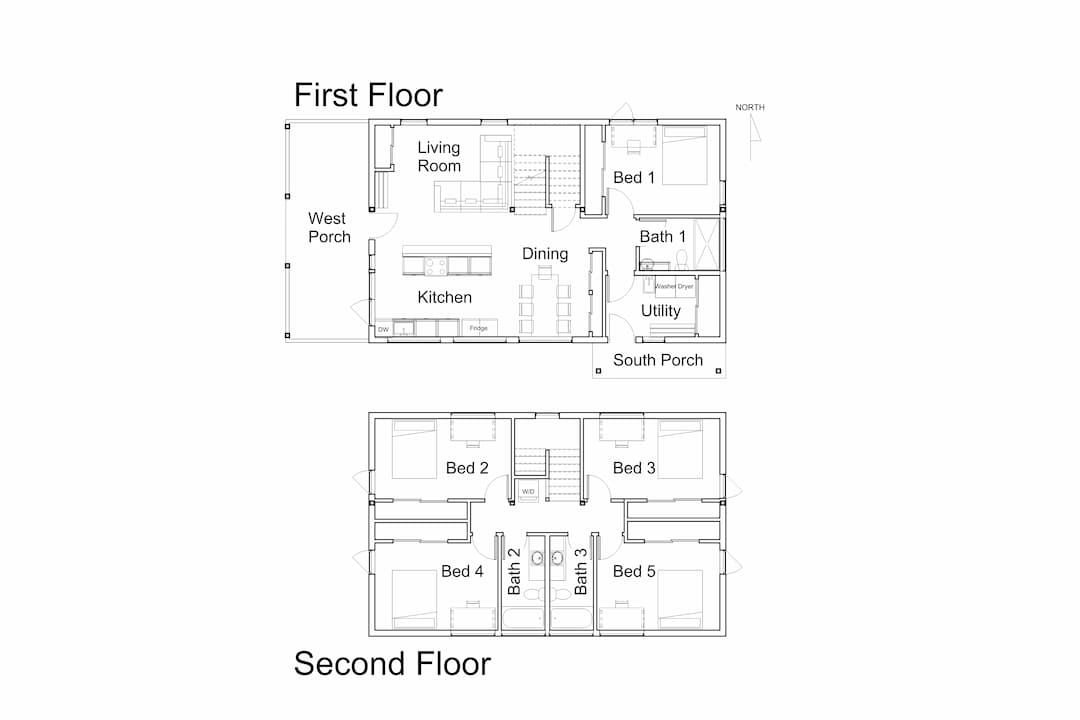

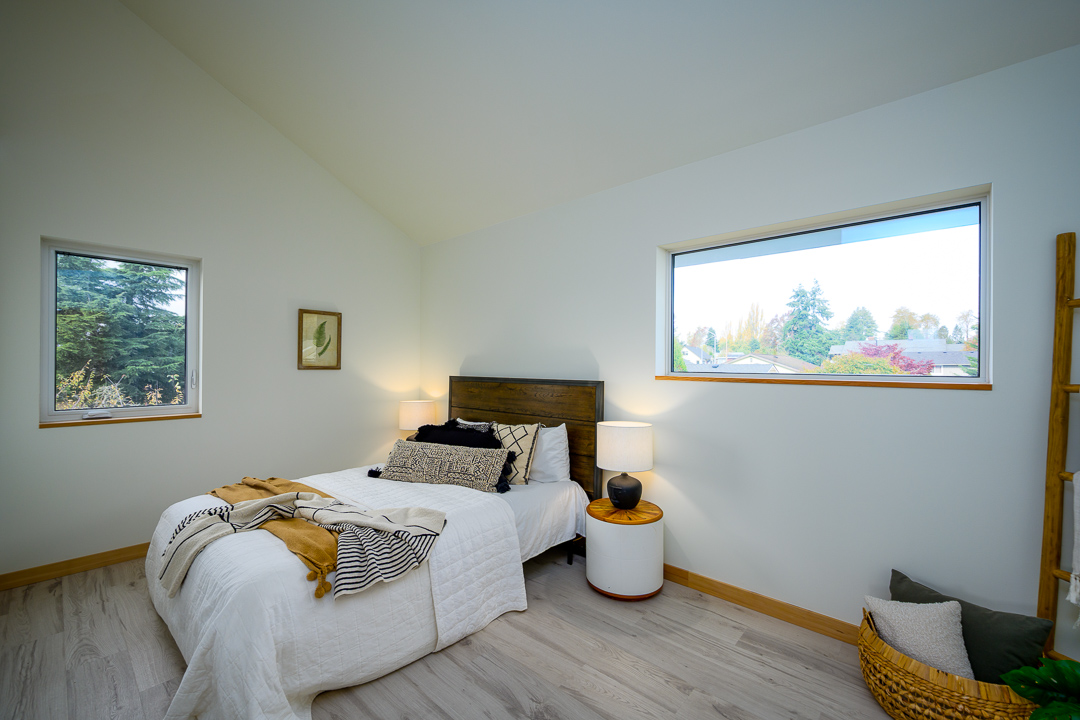

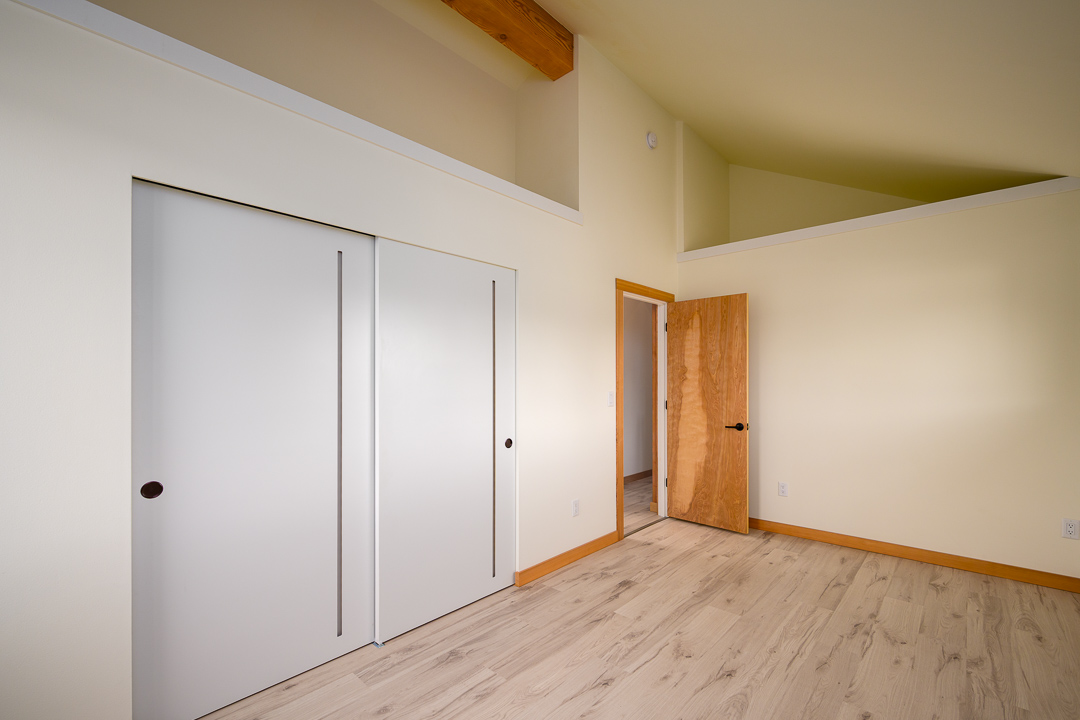

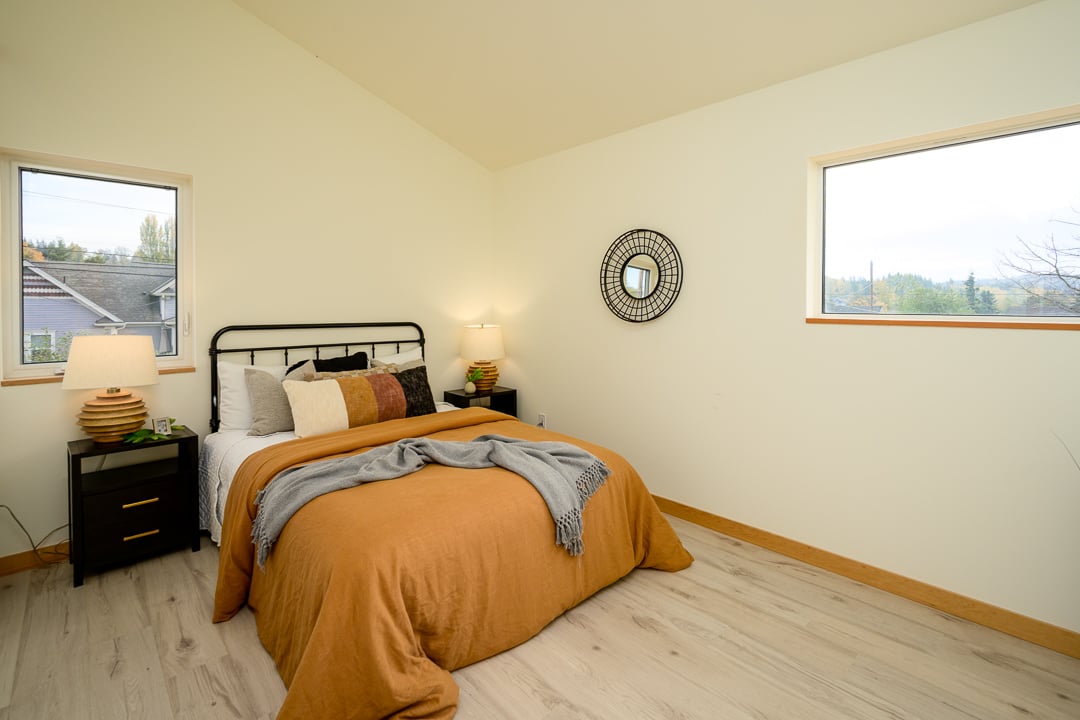

Originally designed to be co-housing with the intent of multiple family units buying/rent in, this home is ahead of its time. The first floor was designed for aging-in-place with all the necessary home components to accommodate someone with mobility impairments, while the second floor has 4 additional spacious bedrooms for a wide variety of room layouts and uses along with 2 full bathrooms. Both floors also have washer and dryer hookups. 2602 Woburn is perfect for a large or multi-generational family unit, or a group of friends to purchase together.

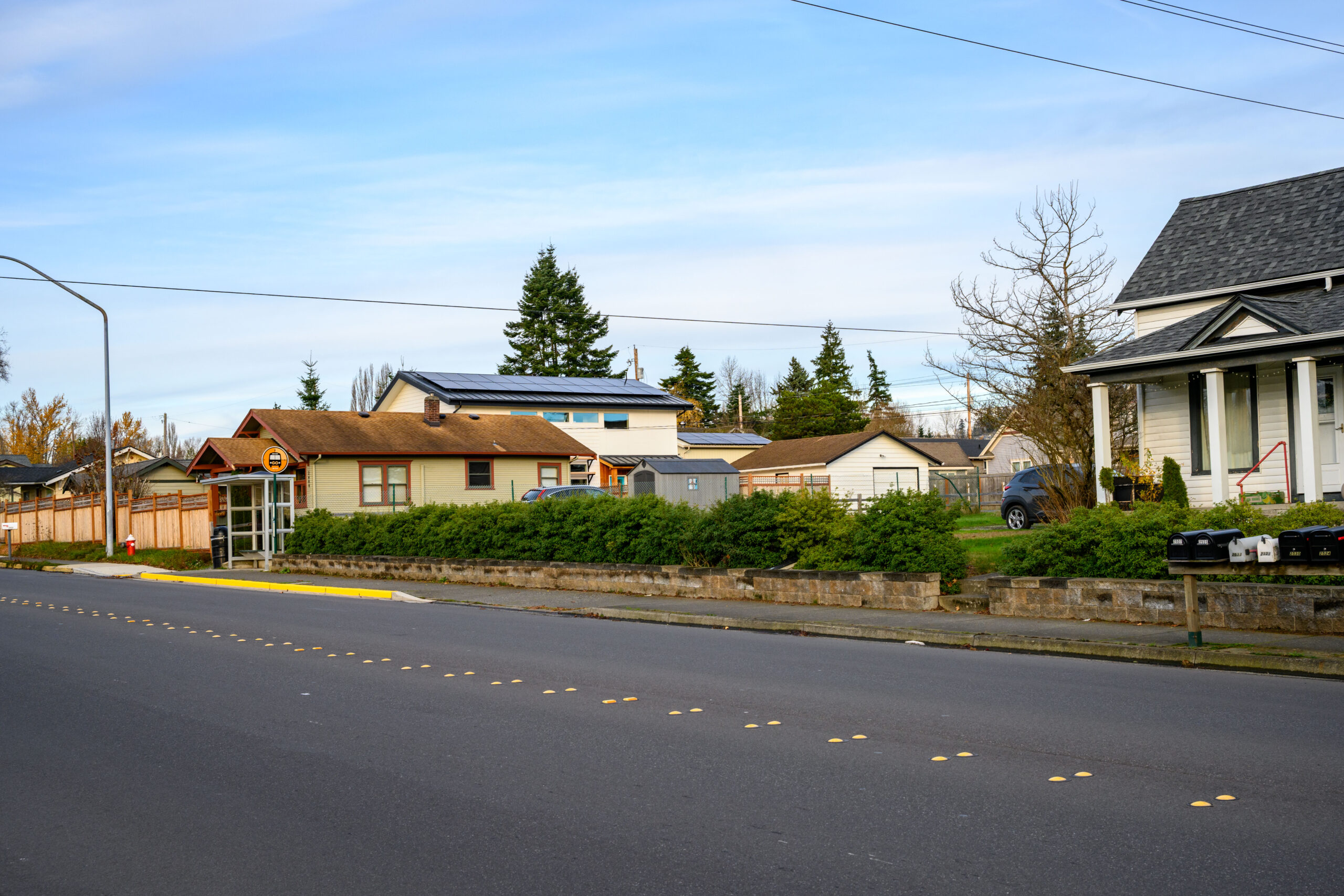

Located walking distance to a main shopping/eating/recreation center and with a main bus stop right outside, this home doesn’t need a garage and encourages transportation by foot, bike or public transportation.



Specs

  • Overview:
    • 2,000sf SFR

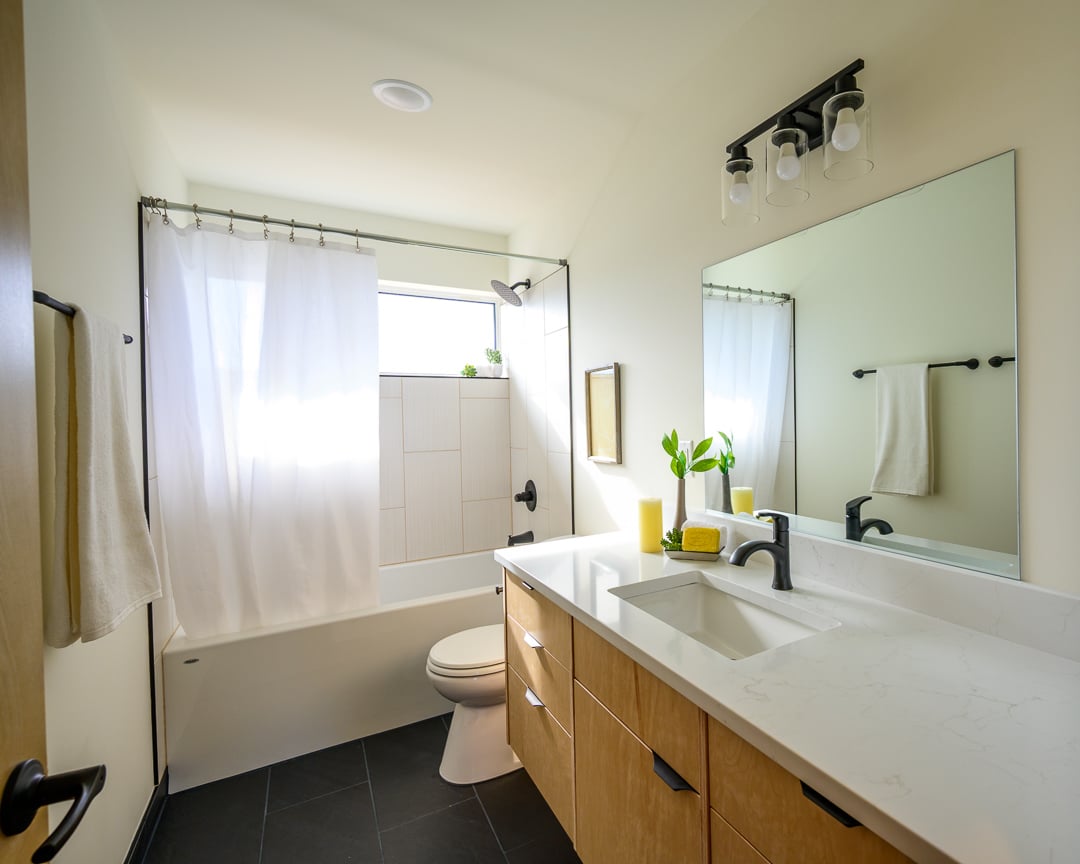

    • 5 bedroom, 3 bathroom
    • Net Zero Energy
    • Passive solar heating/cooling design
    • Insulation: R-29 walls & R-45 ceiling
    • Air Sealing: 0.34ACH

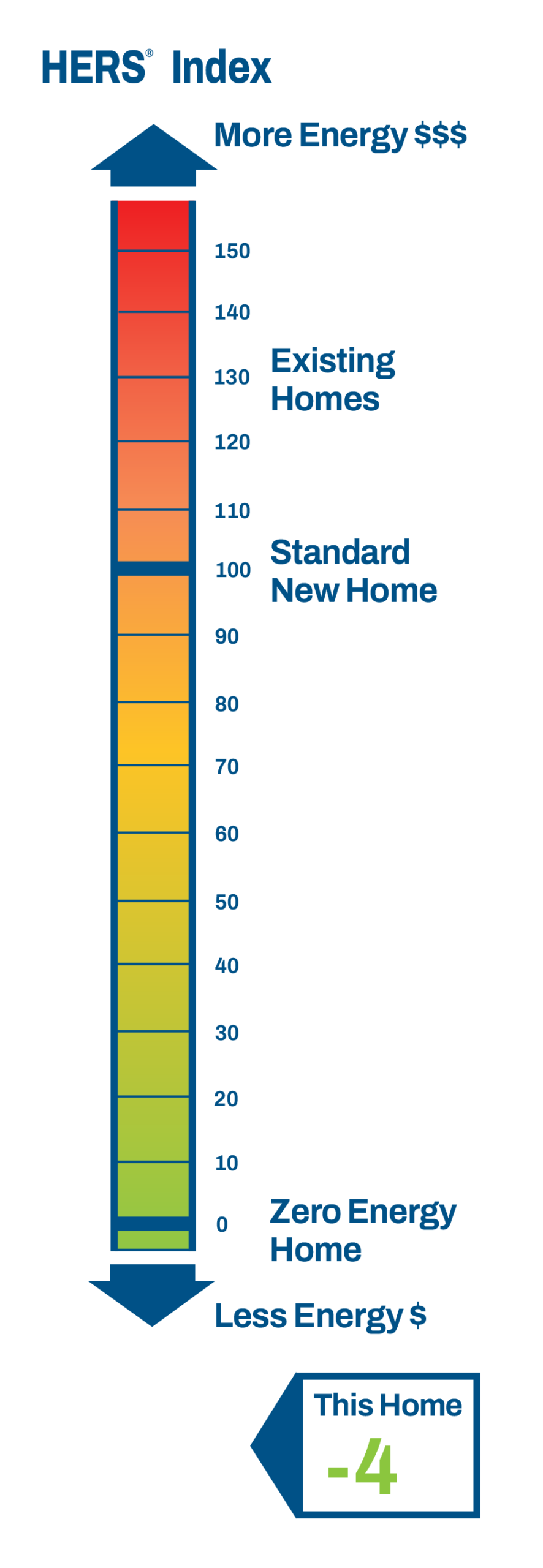

    • HERS Index: -4
    • Certifications: DOE Zero Energy Ready Home certified, ENERGY STAR certified, EPA Indoor airPLUS certified, anticipated Built Green 4-star certified

Mechanical:

    • Ventilation: Fantech Hero 250 with built in HEPA filter. Built-in humidity, temperature, and CO2
    • Heating/Cooling: Chilltrix CX-50; hydronic radiant floor heating downstairs and 1 fan coil unit

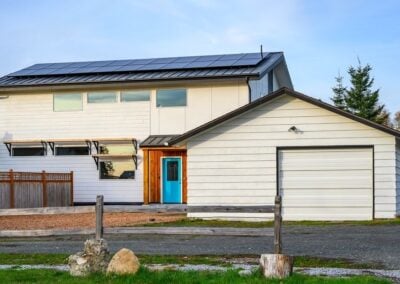

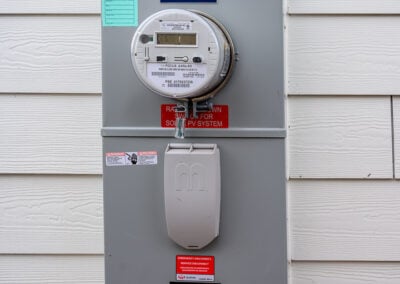

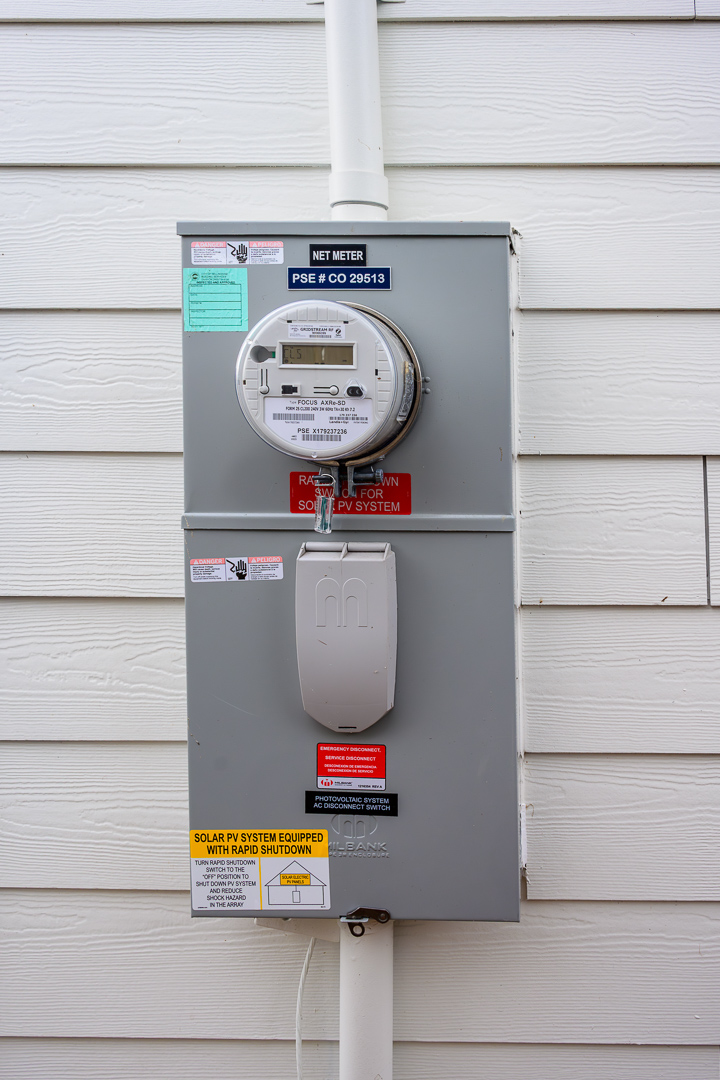

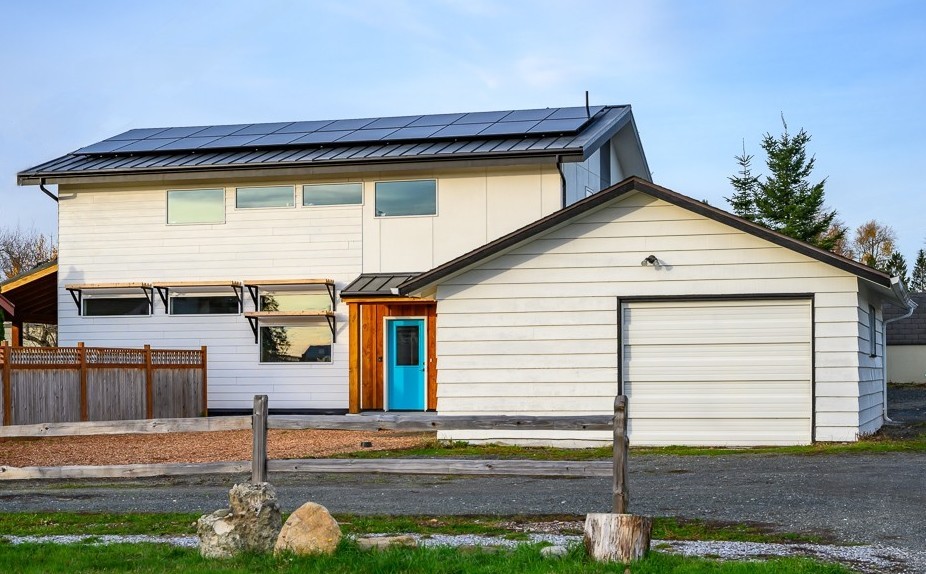

    • PV: 9.84kW solar array

Selections:

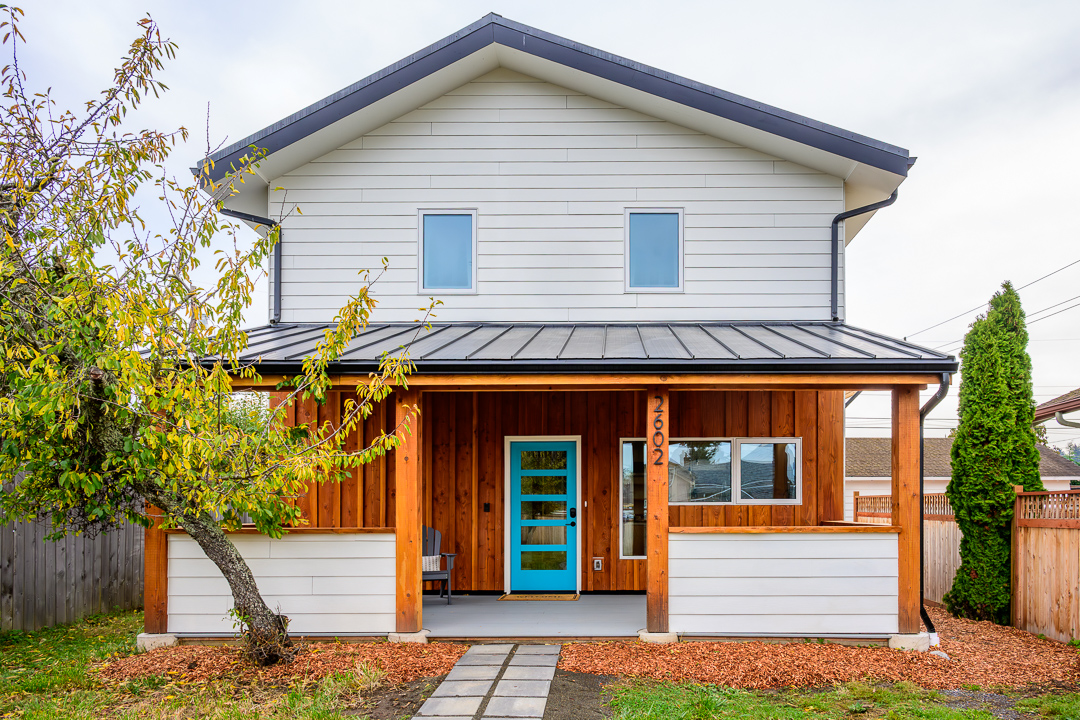

    • Hardie lap, panel and shingle siding

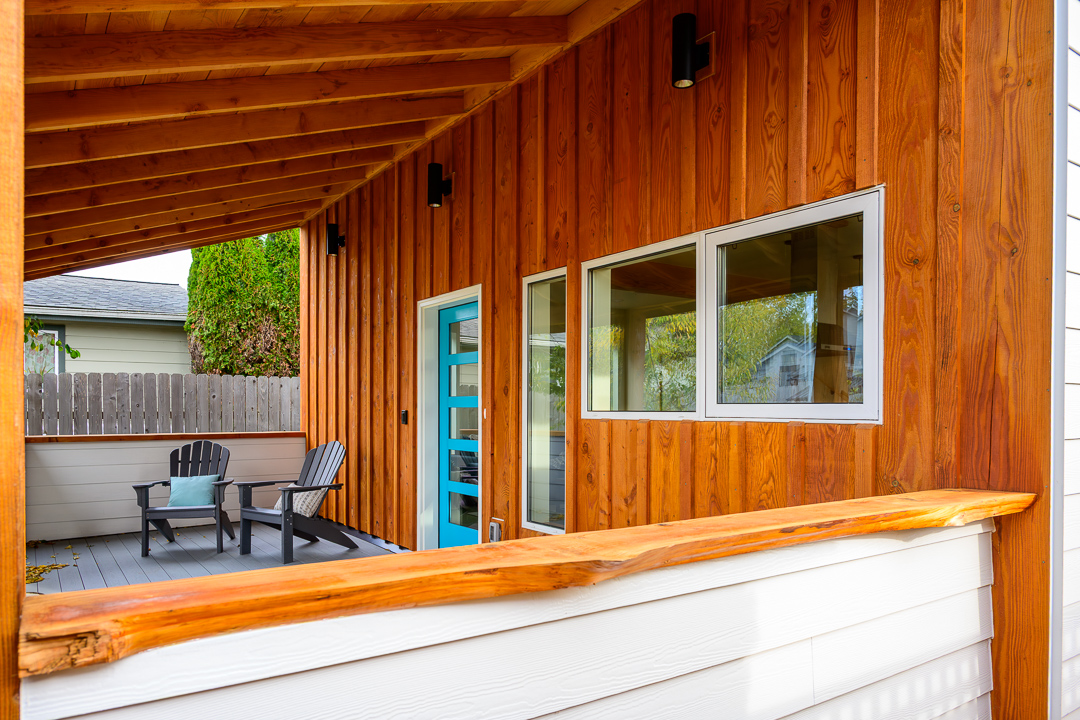

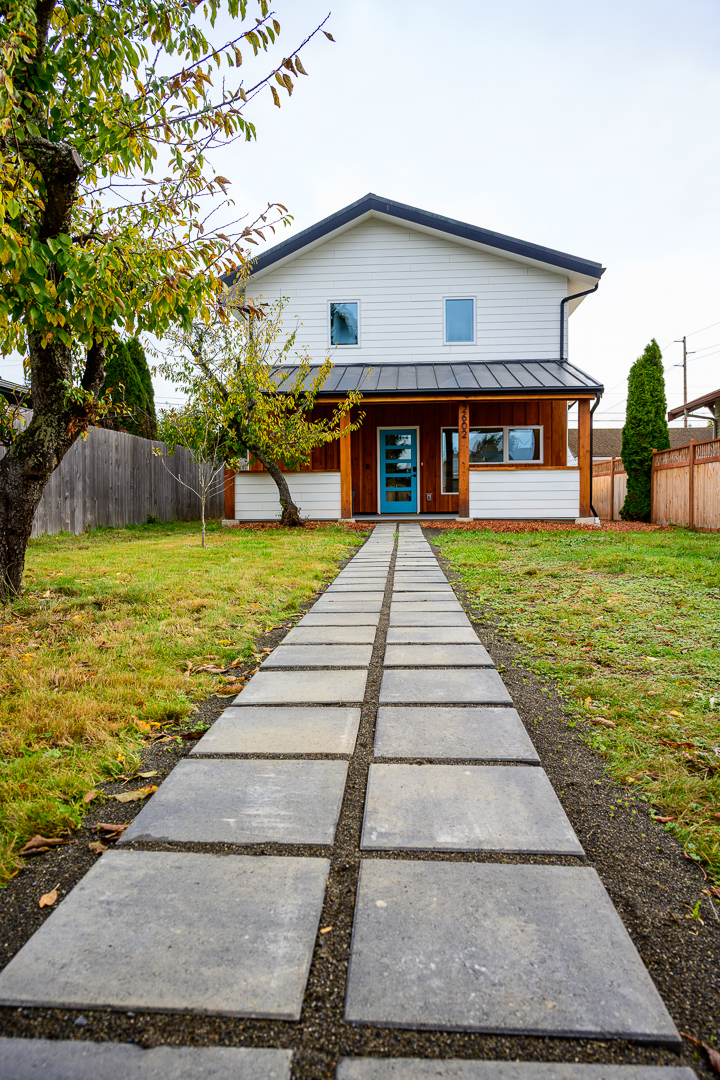

    • Cedar siding and posts at entry
    • Taylor Metal Easylock steel roofing
    • Rotary birch & VanAir doors

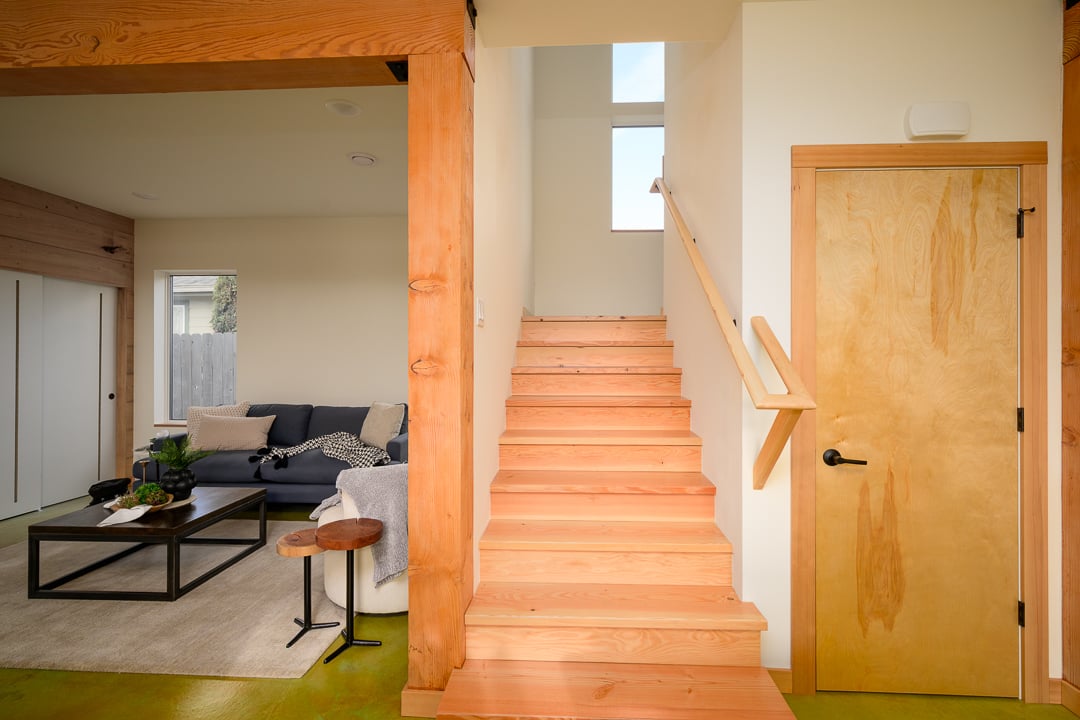

    • Hemlock trim

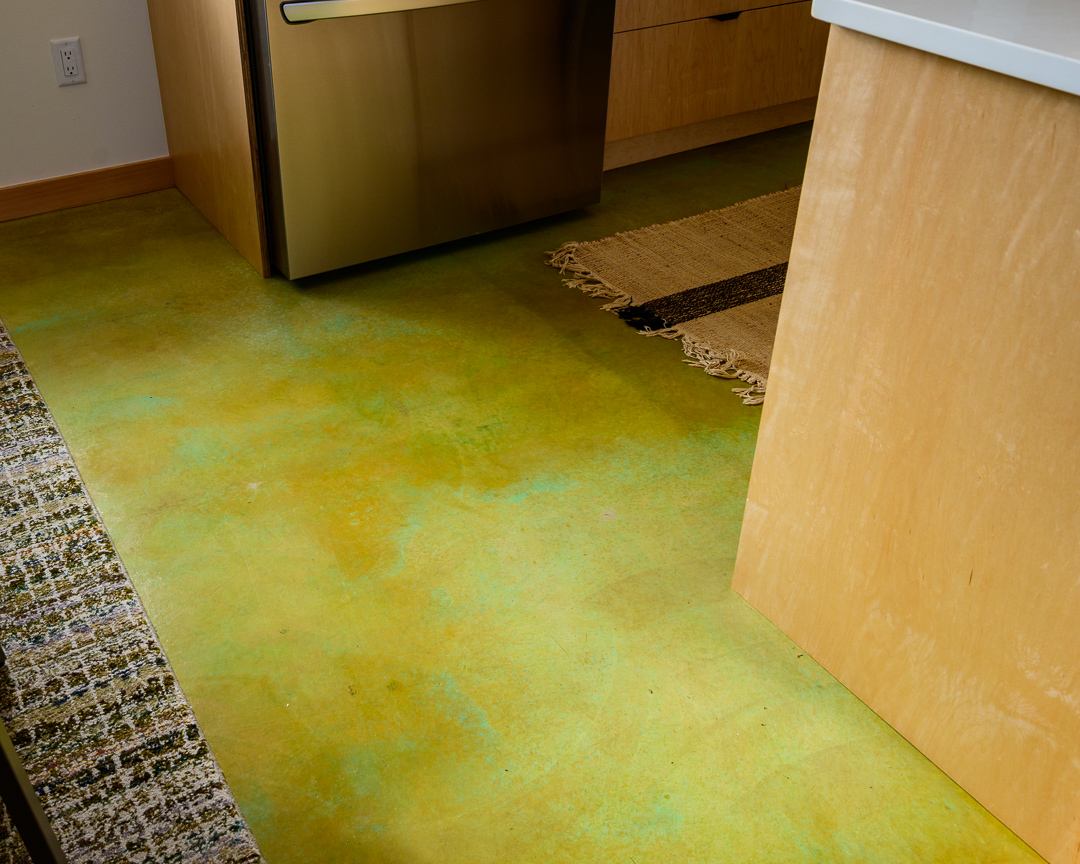

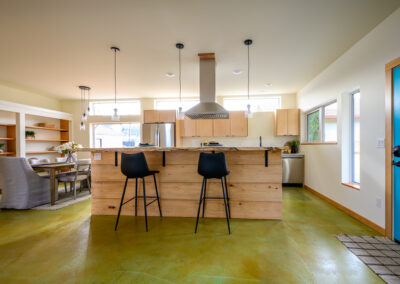

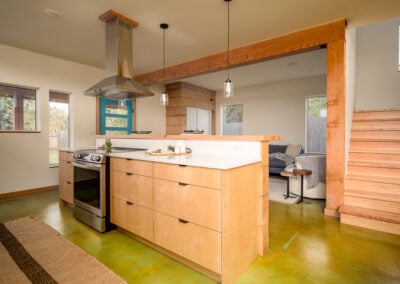

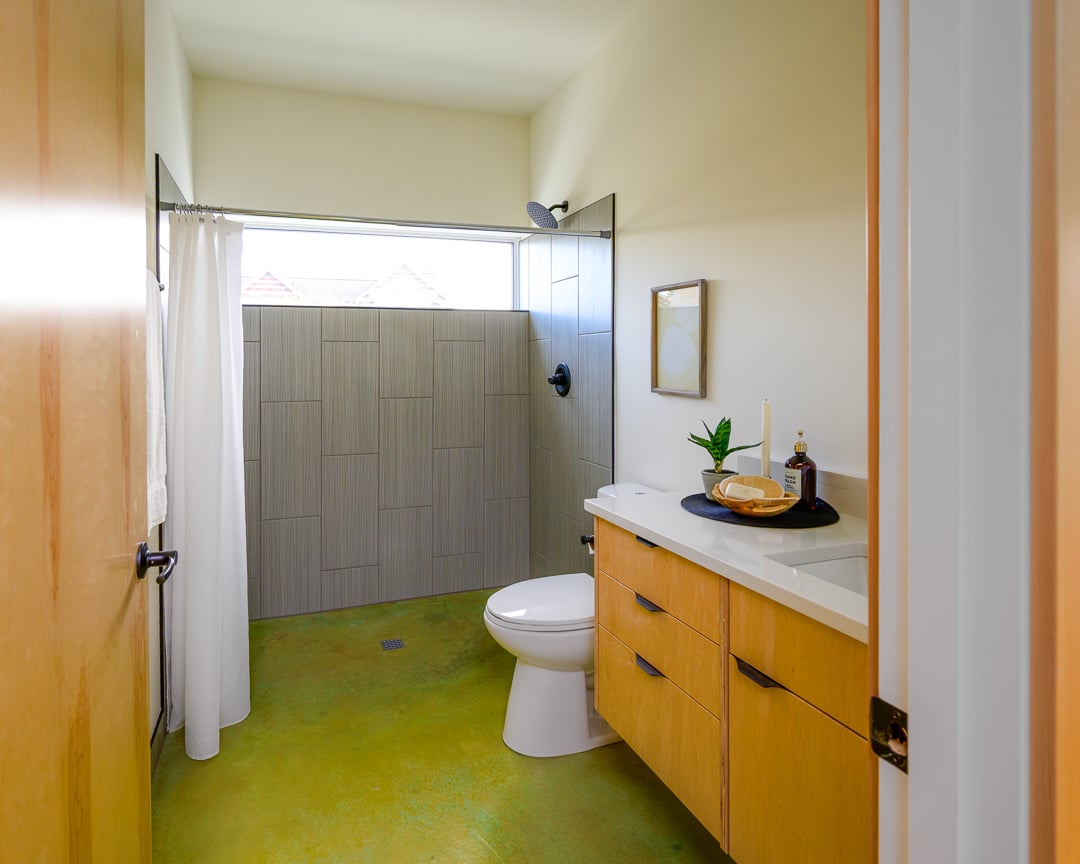

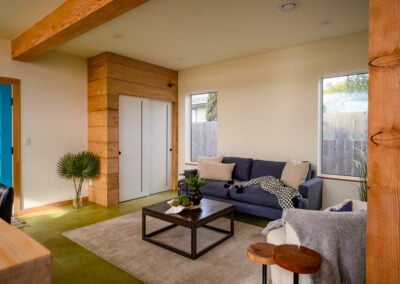

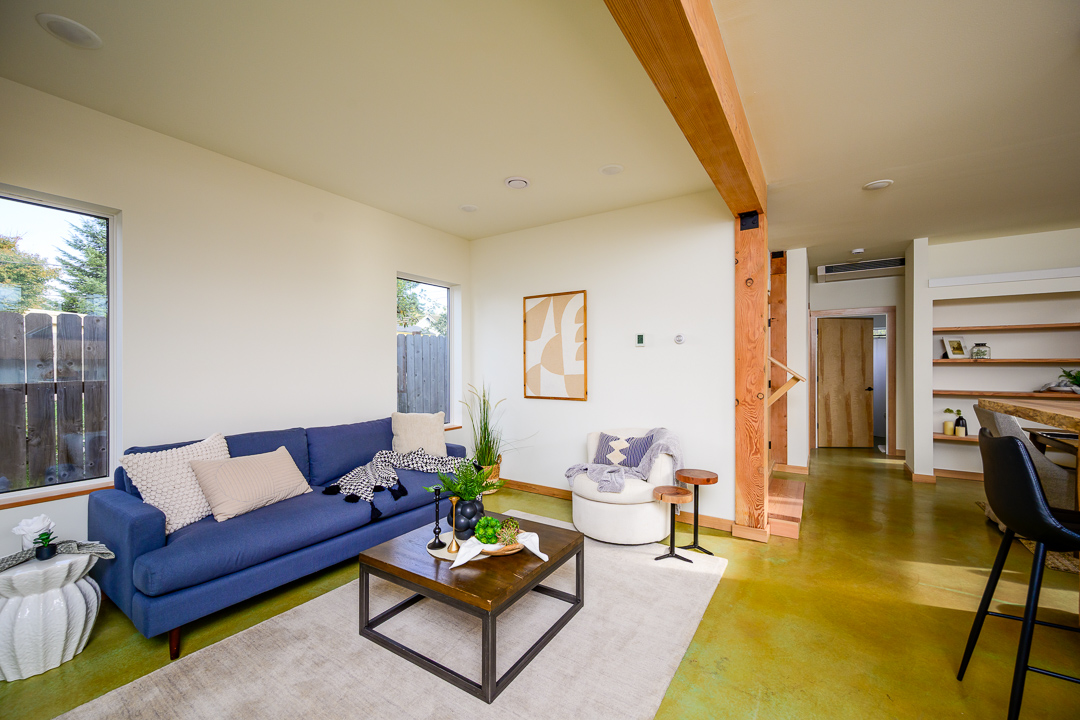

    • Acid stained concrete at first floor

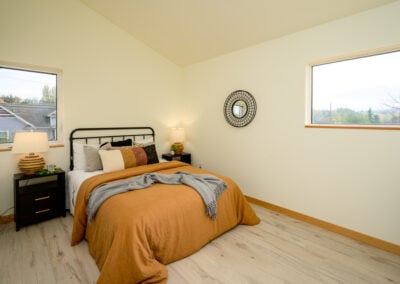

    • FloorScore certified luminant flooring on second floor

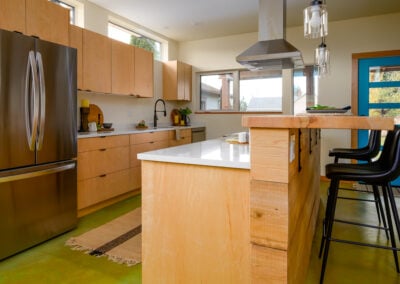

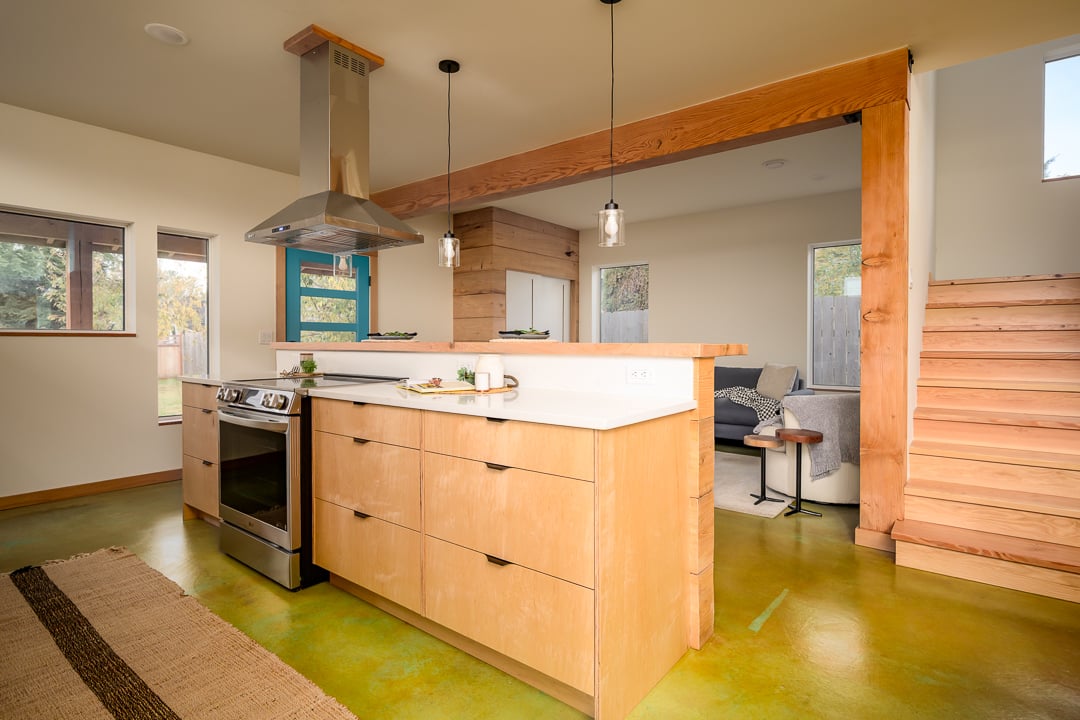

    • Locally made custom maple-ply cabinets
    • Quartz countertops
    • LED lighting
    • WaterSense faucets and toilets
    • ENERGY STAR appliances and induction range
    • Balanced range hood
    • No/Low-VOC finishes
    • Triple pane, Low-E coated, argon-filled locally made vinyl windows
